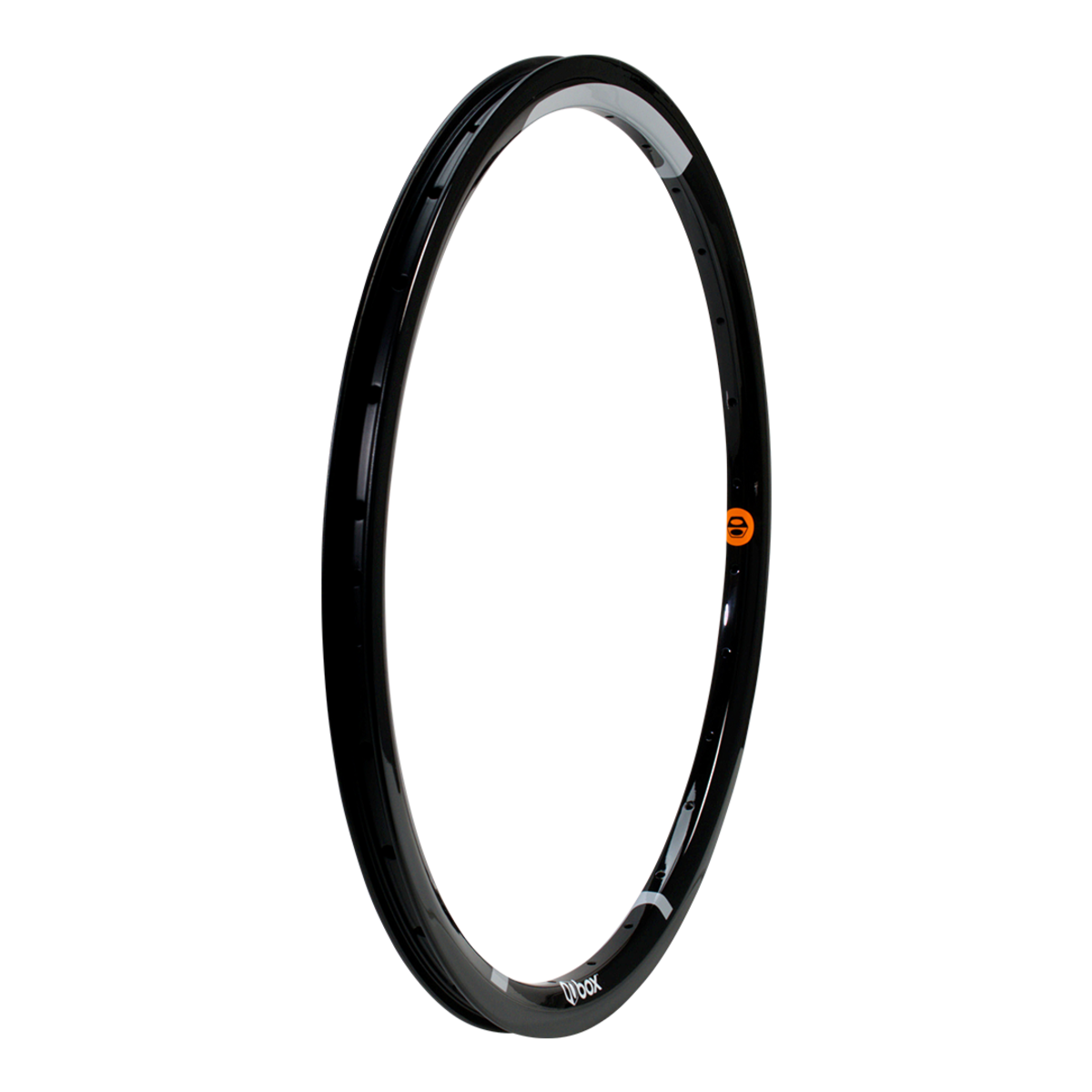

Box One Carbon 20x1-1/8” 28H Rim


Box One Carbon BMX Hoops exploit a medium height profile and wide internal dimensions to create a high performing, stiff carbon rim. Due to their compatibility with both tubeless and tubed configurations, these rims have a broad range of tire options and setup possibilities making them perfect for any track. Available in 28-hole 20 x 1-1/8-inch with and without brake-tracks. PLEASE NOTE: Box One Carbon BMX Hoops with brake tracks require Carbon Brake Pad Inserts and CANNOT be used with standard Brake Pads made for aluminum Rims.

Rim Size


• Carbon fiber UD Construction
• Medium Tall Profile
• Brake and Brakeless Versions
• Presta Valve Hole
• Tubeless or Tubes
• Optimized Internal Geometry

                                          Front                    Rear
Hole Drilling                      28                        28
ETRTO                          451mm                451mm
Internal Rim Width         24mm                  24mm
External Rim Width        25mm                  25mm
ERD                                 421                       421
Material        Unidirectional Carbon Fiber Unidirectional Carbon Fiber
Weight                      300g/10.5oz          300g/10.5oz
